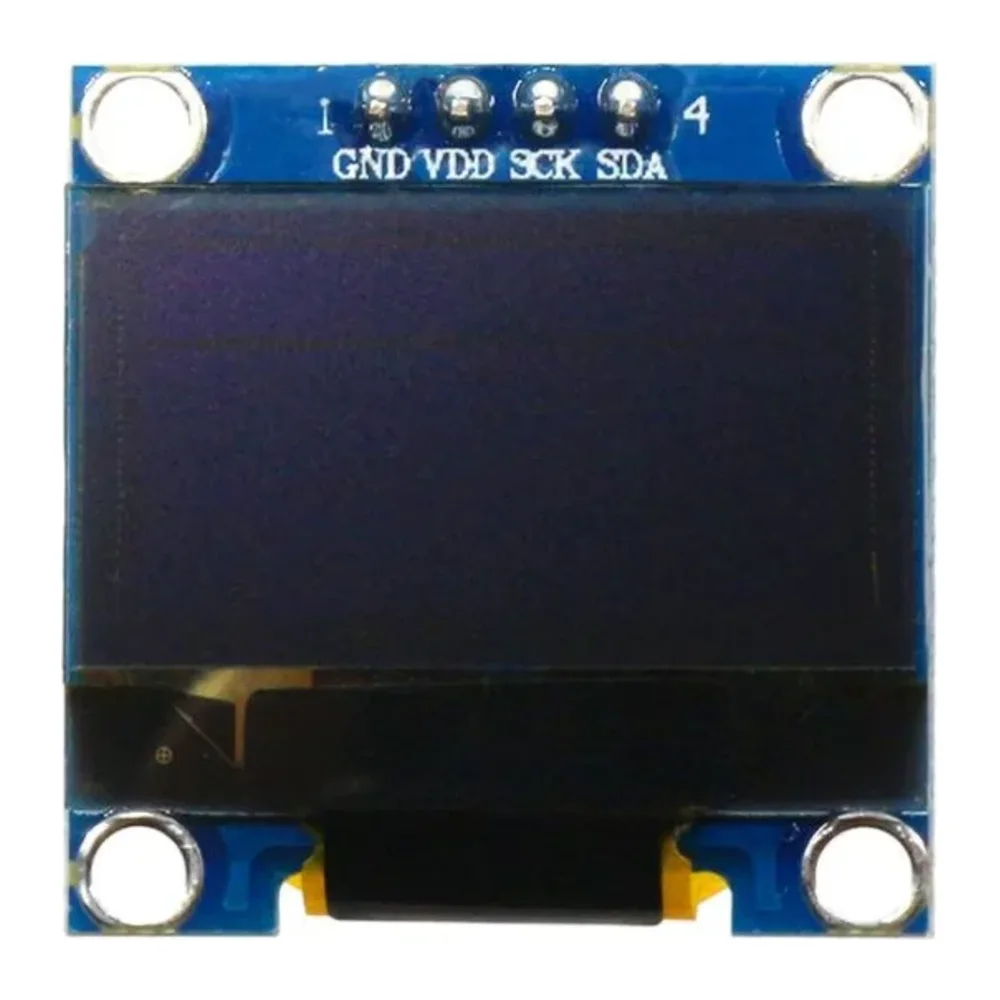

0.96" OLED Display 128×64 (SSD1306, I²C)

This 0.96-inch OLED has self-lit pixels, so it stays readable in the dark and from wide angles while drawing very little power. It uses the SSD1306 driver over I²C, supported by the Adafruit SSD1306, U8g2 and ESPHome libraries, and shares the I²C bus with your sensors.

Key features

• 128 × 64 pixels, high contrast, no backlight needed
• I²C — only SDA and SCL plus power
• Wide viewing angle, ≈ 20 mA typical
• Works with 3.3 V and 5 V boards

Specifications

What's in the box

• 1 × 0.96" OLED module

Ideal for

• Sensor dashboards
• Clocks and timers
• Menus for small devices

Good to know

• Pixel colour (white, blue or yellow-blue) may vary by batch.
