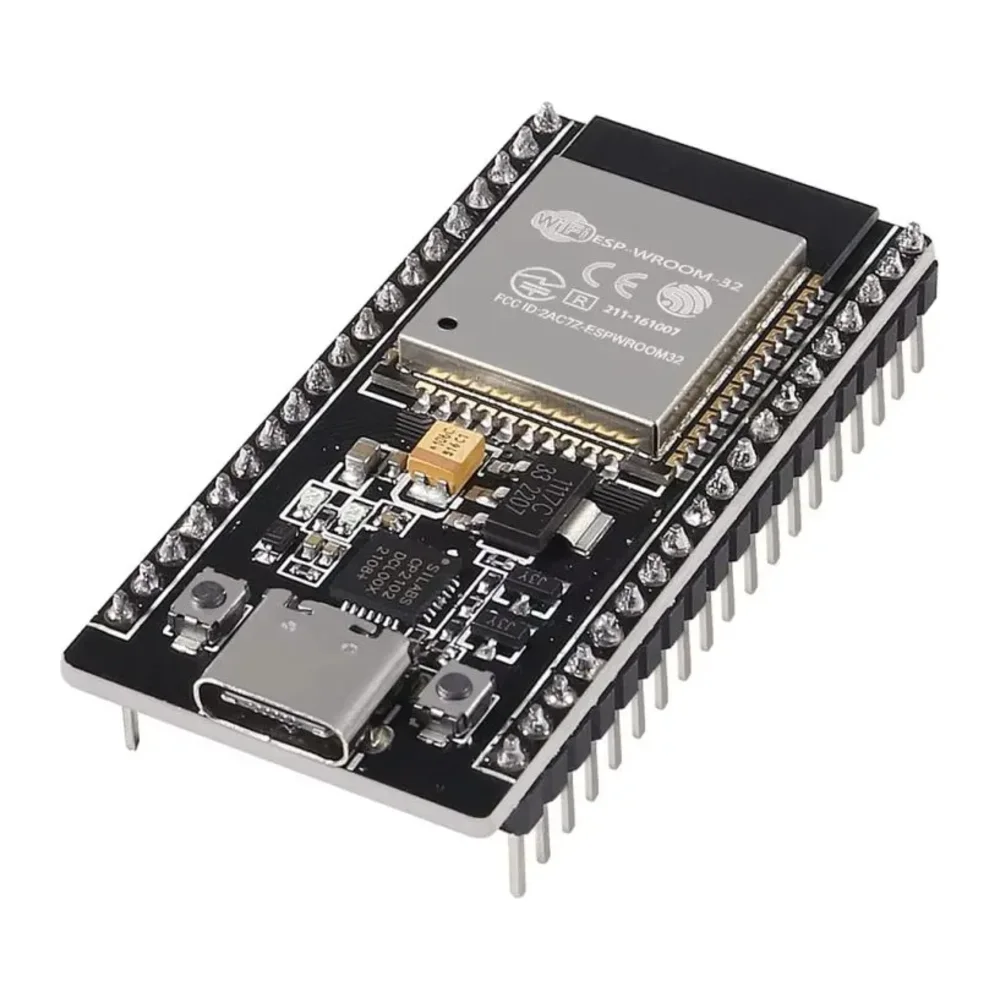

Full-pinout ESP32 board exposing all 38 pins of the ESP32-WROOM-32 — maximum I/O for bigger Wi-Fi and Bluetooth projects.
The 38-pin DevKitC follows Espressif's reference design and breaks out every usable pin of the ESP32-WROOM-32 module, including the extra GPIOs the 30-pin boards hide. It is the best choice when you need many sensors, displays and outputs on one controller, or when following Espressif's official documentation and pinouts.
| Module | ESP32-WROOM-32, dual-core Xtensa LX6, 240 MHz |
|---|---|
| Memory | 520 KB SRAM, 4 MB flash |
| Wireless | Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic + BLE) |
| USB | CP2102 USB-UART bridge |
| I/O | 34 GPIO on the chip (some input-only), 18 ADC channels, 2 DAC, 10 touch |
| Power | 5 V via USB or 5 V pin, 3.3 V logic |
| Dimensions | ≈ 55 × 28 mm |
