Converts 4–35 V down to any voltage from 1.25 to 30 V at up to 3 A — power 5 V boards from 12 V batteries or solar panels.
7-day returns on unused items · Return policy

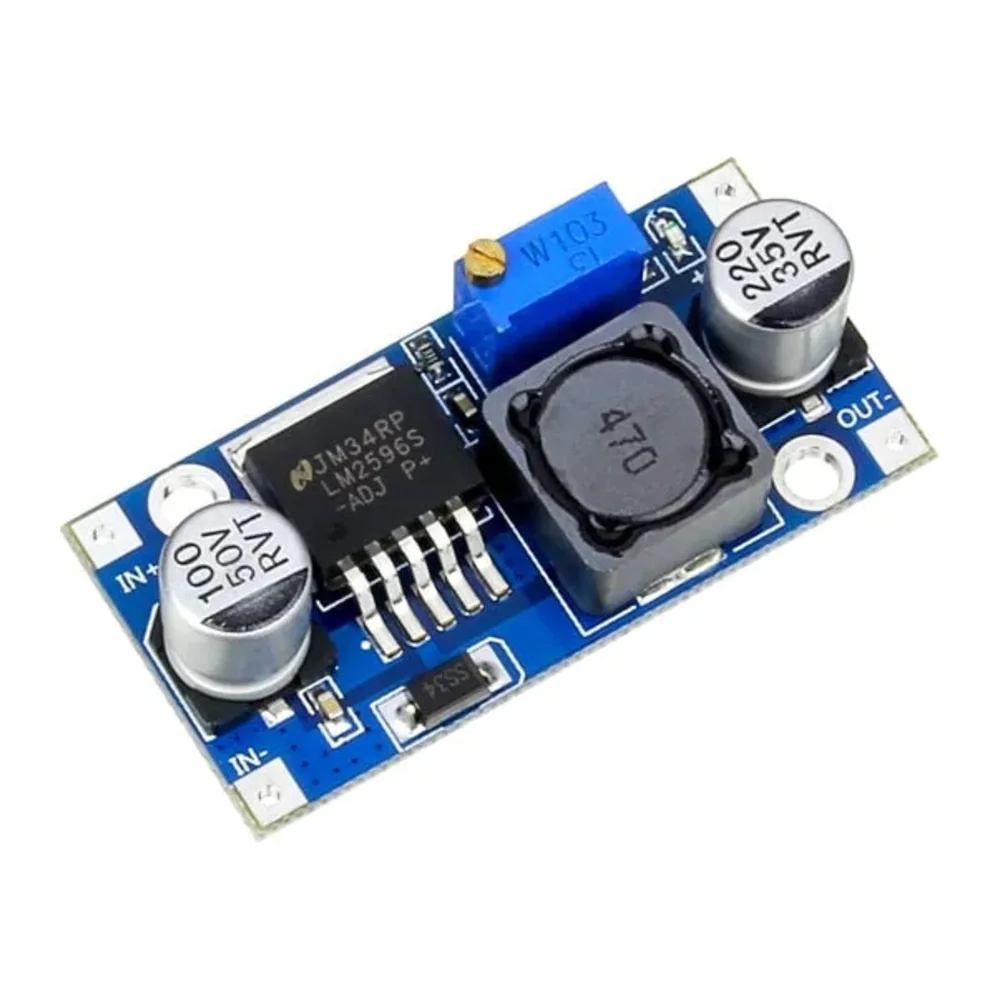

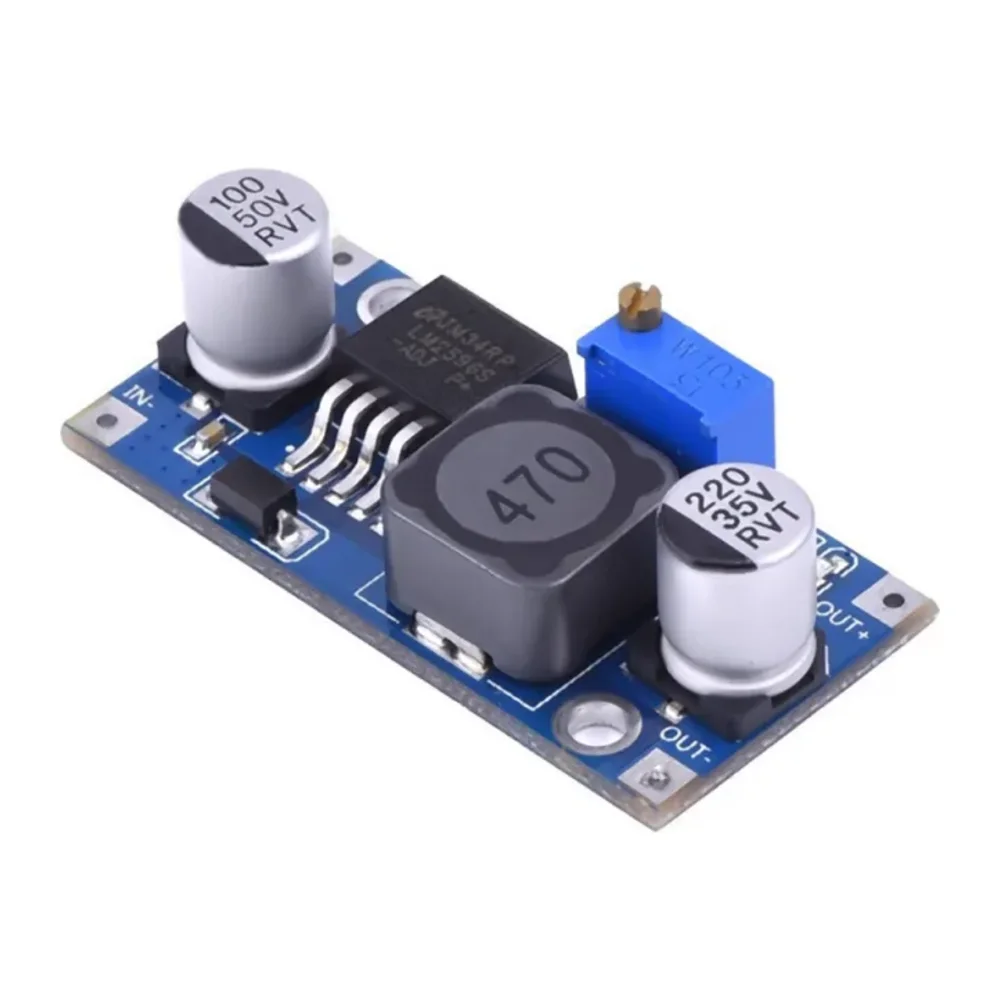

The LM2596 converter efficiently steps a higher voltage down to the level your electronics need — for example 12 V from a car or solar battery down to 5 V for an Arduino or 3.3 V for sensors. Turn the brass potentiometer to set the output while measuring with a multimeter. Switching operation wastes far less energy than a linear regulator.
| Input voltage | 4 – 35 V DC |
|---|---|
| Output voltage | 1.25 – 30 V DC (input must be ≥ 1.5 V higher) |
| Output current | 3 A max |
| Efficiency | Up to 92 % |
| Dimensions | 43 × 21 × 14 mm |
Measures AC or DC current through an isolated Hall-effect sensor — available in ±5 A, ±20 A and ±30 A ranges.
Charge single-cell 3.7 V Li-ion and LiPo batteries such as 18650 cells from USB, with over-charge and over-discharge protection.
