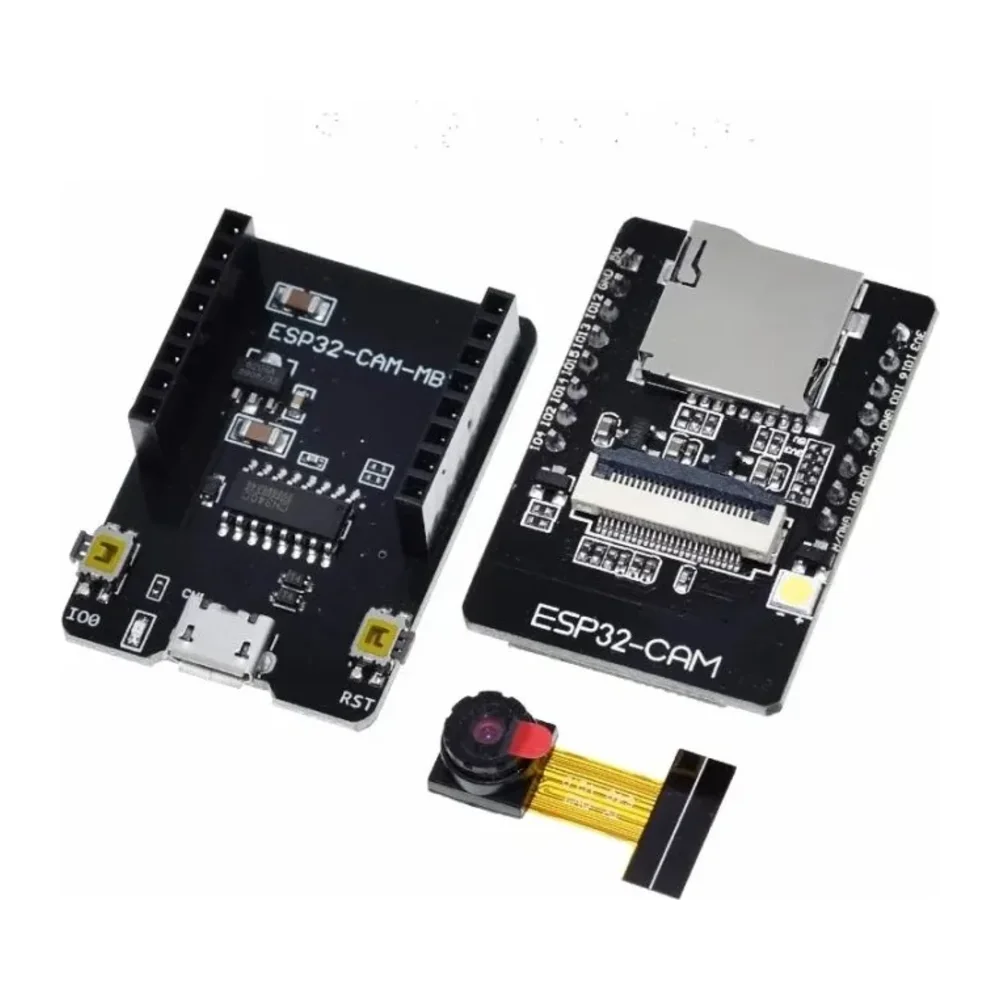

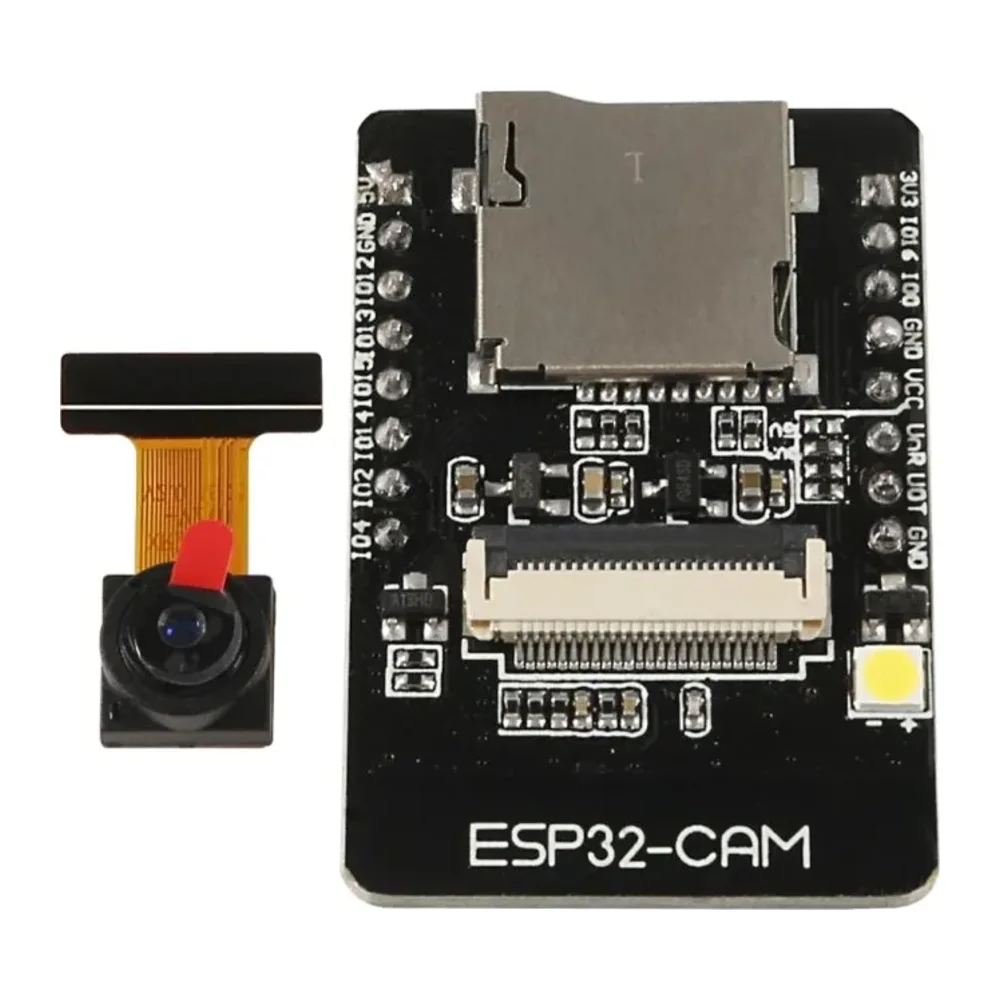

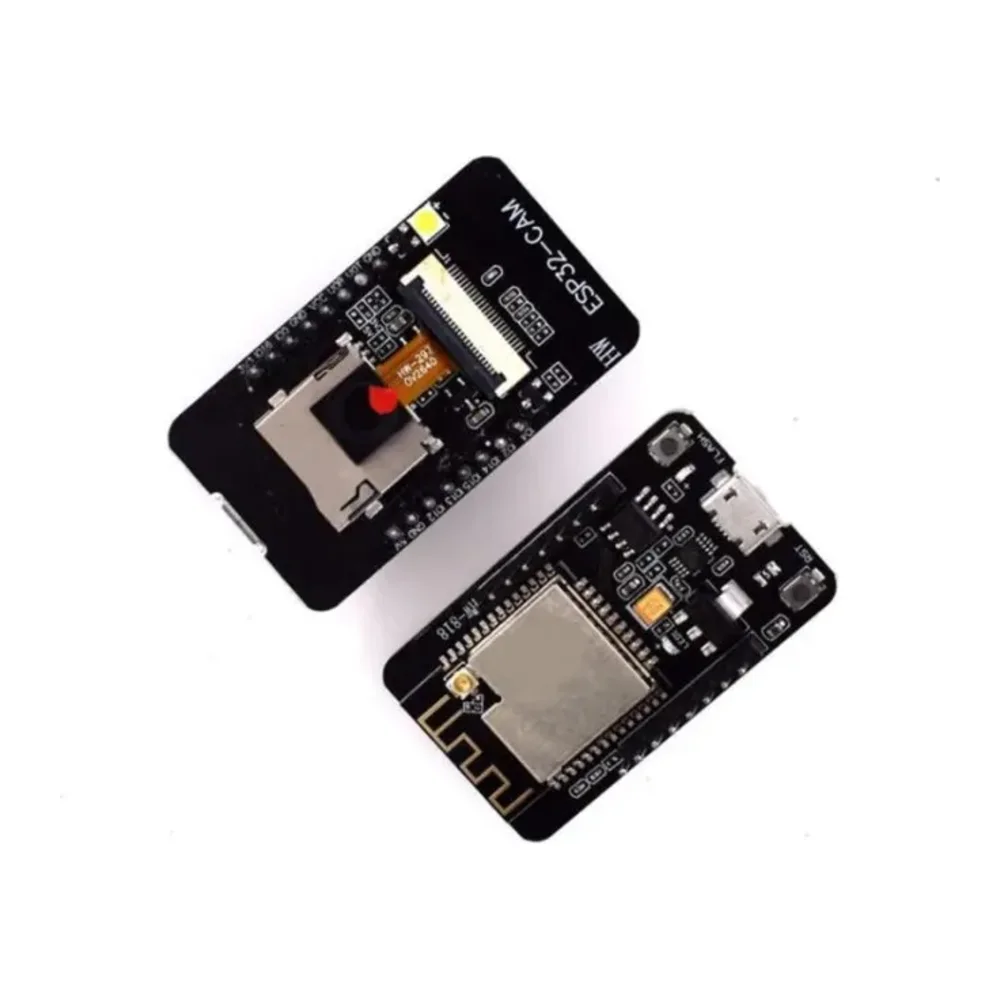

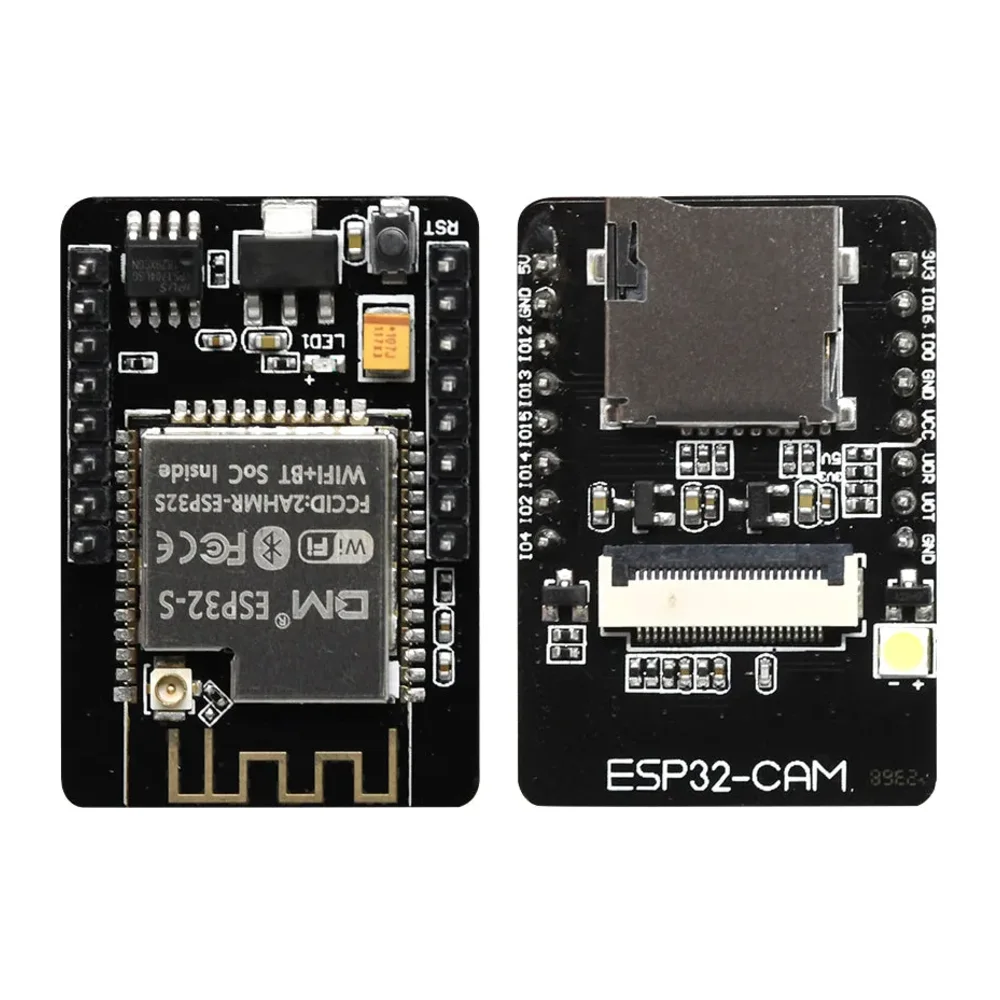

ESP32-CAM with ESP32-CAM-MB Programmer & OV2640 Camera

The ESP32-CAM combines an ESP32 with 4 MB PSRAM, an OV2640 2-megapixel camera and a microSD slot on a board barely larger than a stamp. The included ESP32-CAM-MB base adds a USB port and automatic boot/reset, so you upload sketches without wiring an FTDI adapter. Flash the CameraWebServer example and you have a live video stream in your browser; add face detection, motion-triggered photos or a Telegram bot from there.

Key features

• OV2640 2 MP camera with JPEG output up to 1600 × 1200
• ESP32 with 4 MB PSRAM, Wi-Fi and Bluetooth
• microSD slot for saving photos and video
• Bright on-board flash LED
• ESP32-CAM-MB USB programmer with auto boot/reset included

Specifications

What's in the box

• 1 × ESP32-CAM board
• 1 × OV2640 camera
• 1 × ESP32-CAM-MB USB programmer base

Ideal for

• Wi-Fi security cameras
• Smart doorbells
• Time-lapse and wildlife cameras
• Face-recognition door locks

Good to know

• Use a good 5 V supply — brown-outs during Wi-Fi transmission are the most common cause of resets.
• Few GPIOs are free because the camera and SD card use most pins.
